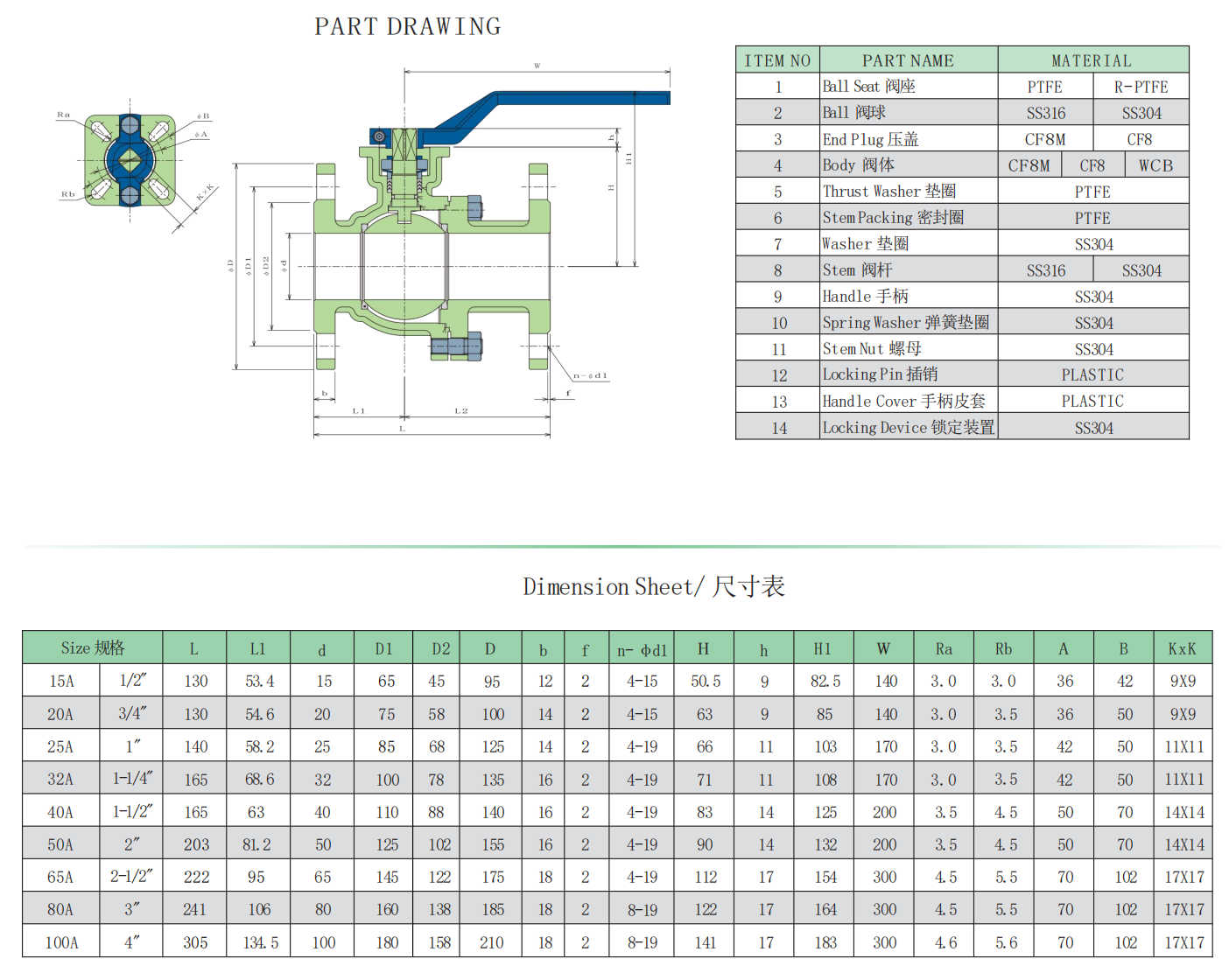

2-PC Ball Valve Flange End With Manual C2F-FM(GB)

产品特点PR O D U C T S ST A N D A R D：
♦Blow-Out ProofStem 防脱出阀杆
♦Investment Casting Body精密铸造阀体
♦Pressure Blance Hole In Ball Solt球槽减压孔设计
♦Flange Standard:JIS B 2220 10K法兰标准：JIS B 2220 10K
♦Locking Device Handle Available 带锁定装置手柄选配
♦Design Acc:ASME JIS 10K 设计标准：JIS 10K
♦Working Pressure:1.0Mpa 工作压力：1.0Mpa ♦Inspection & Testing Acc:API598检测标准：API 598
