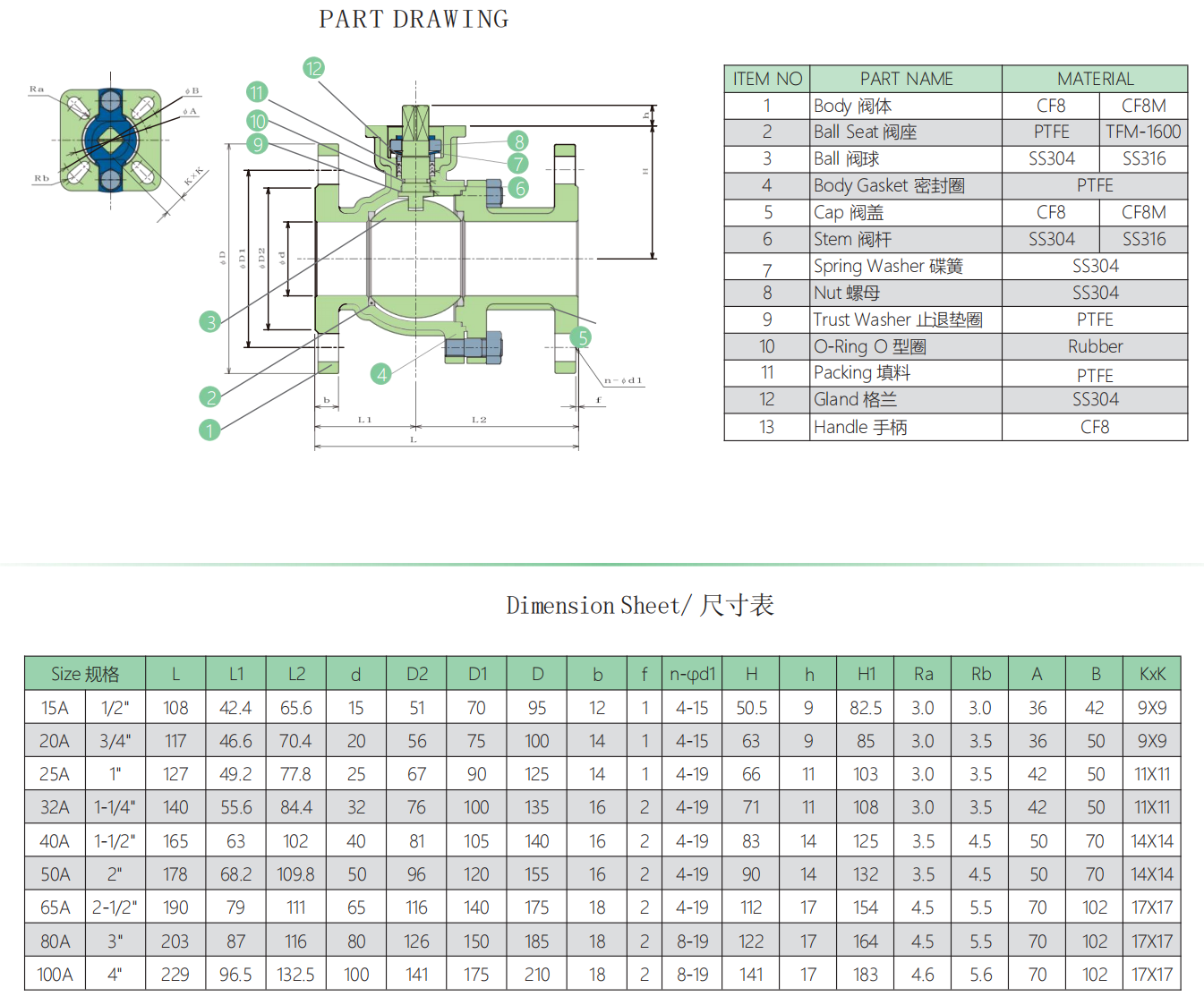

2-PC Ball Valve Flange End With Direct Mounting Pad C2F-FD(JIS)

2-PC Ball Valve Flange End With Direct Mounting Pad C2F-FD(JIS)


•Blow-Out Proof Stem
•Investment Casting Body
•Pressure Blance Hole In Ball Solt
•Flange Standard:JIS B 2220 10K
•Locking Device Handle Available
•Design Acc:ASME JIS 10K
•Working Pressure:1.0Mpa
•Inspection & Testing Acc:API598

•Blow-Out Proof Stem

•Investment Casting Body

•Pressure Blance Hole In Ball Solt

•Flange Standard:JIS B 2220 10K

•Locking Device Handle Available

•Design Acc:ASME JIS 10K

•Working Pressure:1.0Mpa

•Inspection & Testing Acc:API598
