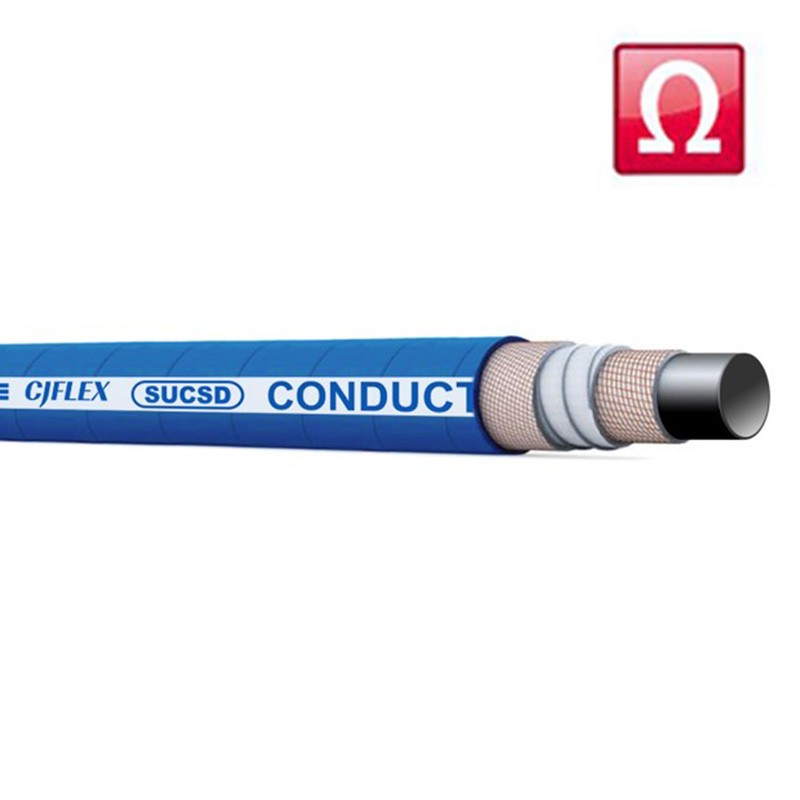

Conductive UPE Chemical Suction & Discharge Hose, SUCSD

Applications:
It is suitable for transporting low-pressure steam, hot water, weak acid-base
liquid, air and inertial gas in antistatic occasions of chemical industry etc. Construction: Tube: Antistatic EPDM, black, smooth
Reinforcement: High strength synthetic fiber. Cover: Antistatic EPDM, black or blue, special needling treatment, smooth
(fabric impression is available for ID>25.4mm). Antistatic standard: Conductive rubber layer, specific resistance R<106 Ω
Temperature range: - 4 0 。 C + 1 2 0 。 C ( ID≤ 2 5 . 4 mm can be customized for high temperature resistance, with the maximum temperature of 160 ℃)
Technical standard: BS EN ISO 6134, ROHS
Note: Do not use for petroleum medium.

Application

Suitable for the transfer of 98% of chemicals, solvents and corrosive fluids, and can be used for suction service.Corrugated design for increased flexibility and smaller bending radius.

Construction

  • Tube: Black conductive UHMWPE (Ultra High Molecular Weight Polyethylene)

  • Reinforcement: Multi-ply high-tensile synthetic fabric with embedded steel helix

  • Cover: Blue EPDM synthetic rubber, excellent anti-oxidation and abrasion resistance

Temperature Range

-40°C ~ +100°C

Approval

FDA 21 CFR 177.1520




INQUIRY
