EPDMFOOD GRADE SOFT HOSE EFSD

Application: Designed specifically for manipulators and automated applications, these
require flexibility, durability and high tensile strength. Especially suitable for automobile assembly line, mold and other harsh places. It can transport mineral oil, lubricating oil, freezing fluid, antifreeze, air, water and emulsion. Technical characteristics: With special push fitting, no clamp is fastened. The hose does not conduct electricity. Under 1000 volt DC voltage, the minimum resistance per inch is higher than 1 trillion ohms. The hose is suitable for dynamic bending and
abrasion resistance. Construction: Tube: RMA-A high grade oil resistant and airtight black NBR Ding Qing
synthetic rubber. Reinforcement: Single layer of high strength synthetic fiber braided layer, special braiding angle makes the hose with high flexural resistance, and the
fitting has the strongest tightness. Cover: Wear-resistant, oil-resistant, anti-aging CSM based synthetic rubber, smooth surface, commonly used black, red, blue, other colors can be
customized. Temperature range: -30 to 120 ℃

Application

Suitable for suction and discharge of various edible fluids, including milk, beer, vegetable oil, fats, greases, red wine, fruit juice, 96% alcohol, etc.Ideal for loading and unloading operations of food tankers.Phthalate-free.Capable of conveying hot water and water vapor up to 120°C.

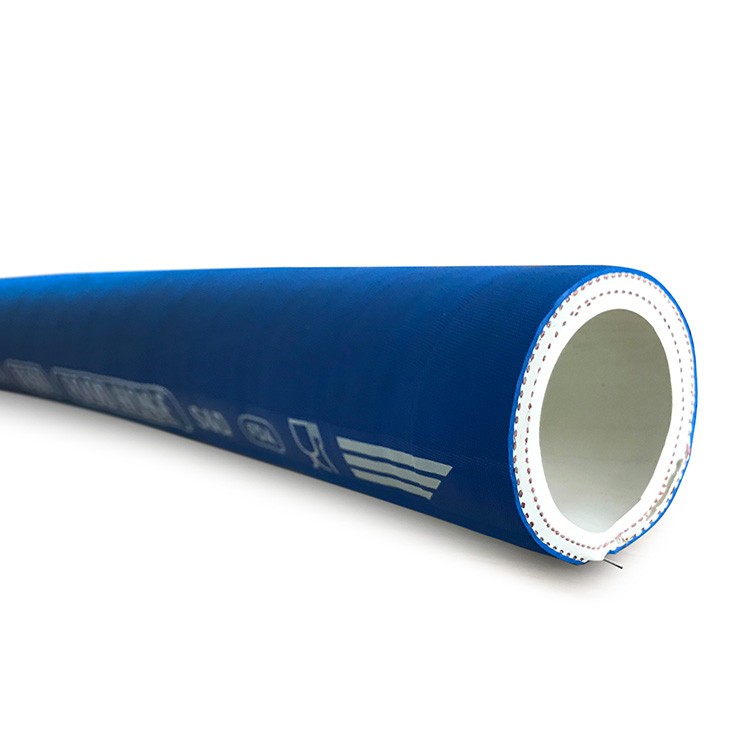

Hose Construction

Tube: White EPDM, heat‑resistant and smooth
Reinforcement: High‑tensile fabric braid with embedded steel helix
Cover: Blue EPDM, anti‑aging, with cloth‑textured surface

Temperature Range

-40°C ～ +120°C

Standards & Approvals

FDA 21 CFR 177.2600, GB 4806.11‑2016

Note

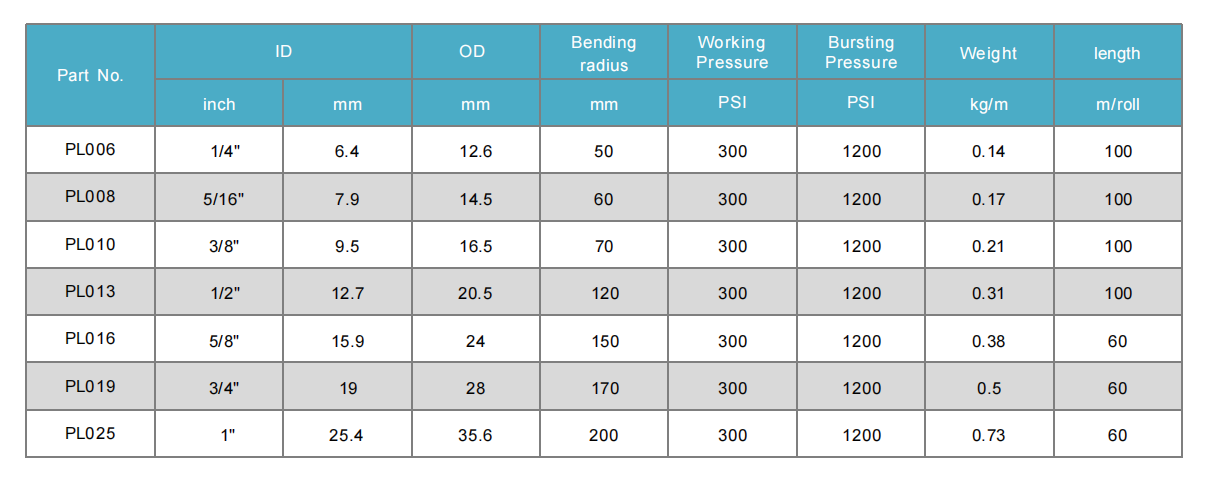

The working pressure values listed are measured at ambient temperature.For working pressure ratings when conveying water vapor above 100°C, please consult our company for specific details.
