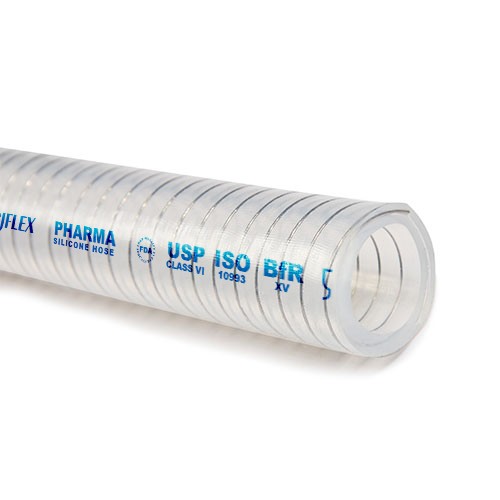

Construction: Type TSO is manufactured from High purity platinum cured Silicone with stainless steel helix reinforcement.
Temp. Range: -60°C and 200°C. (+260°C on request)
Colour: Transparent
Smooth inner and outer surface to resist material adhesion
Suitable for pressure and vacuum.
Suitable for CIP and SIP cleaning
Odourless, Tasteless, Non-Toxic
Certification: FDA, USP,BFR, USDA, ISO 10993
Length: Standard length is 4 or 6 meters.
Construction: Type TSO is manufactured from High purity platinum cured Silicone with stainless steel helix reinforcement.
Temp. Range: -60°C and 200°C. (+260°C on request)
Colour: Transparent
Smooth inner and outer surface to resist material adhesion
Suitable for pressure and vacuum.
Suitable for CIP and SIP cleaning
Odourless, Tasteless, Non-Toxic
Certification: FDA, USP,BFR, USDA, ISO 10993
Length: Standard length is 4 or 6 meters.
Item | I.D | O.D | Bend Radius (mm) | Working Pressure (bar) | Burst Pressure (bar) | Vacuum (bar) | |
in. | mm | mm | mm | bar | bar | bar | |
TSO006 | 1/4" | 6.4 | 16 | 33 | 11 | 33 | 0.91 |
TSO008 | 5/16" | 7.9 | 18 | 35 | 10 | 30 | 0.91 |
TSO010 | 3/8" | 9.5 | 20 | 40 | 9 | 27 | 0.91 |
TSO013 | 1/2" | 12.7 | 23 | 50 | 8.5 | 25.5 | 0.91 |
TSO016 | 5/8" | 15.9 | 26 | 60 | 8 | 24 | 0.91 |
TSO019 | 3/4" | 19 | 29 | 70 | 7.5 | 225 | 0.91 |
TSO025 | 1" | 25.4 | 35 | 85 | 5.5 | 16.5 | 0.91 |
TSO032 | 1-1/4" | 32 | 42 | 110 | 5 | 15 | 0.91 |
TSO038 | 1-1/2" | 38 | 48 | 160 | 4.5 | 13.5 | 0.91 |
TSO045 | 1-3/4" | 45 | 55 | 200 | 4.5 | 13.5 | 0.91 |
TSO051 | 2" | 50.8 | 62 | 250 | 3.5 | 10.5 | 0.91 |
TSO064 | 2-1/2" | 63.5 | 74 | 350 | 2.5 | 7.5 | 0.91 |
TSO076 | 3" | 76.2 | 87 | 550 | 2 | 6 | 0.91 |
TSO089 | 3-1/2" | 89 | 100 | 700 | 1.7 | 5.1 | 0.91 |
TSO102 | 4" | 102 | 113 | 800 | 1.5 | 4.5 | 0.91 |
