Construction

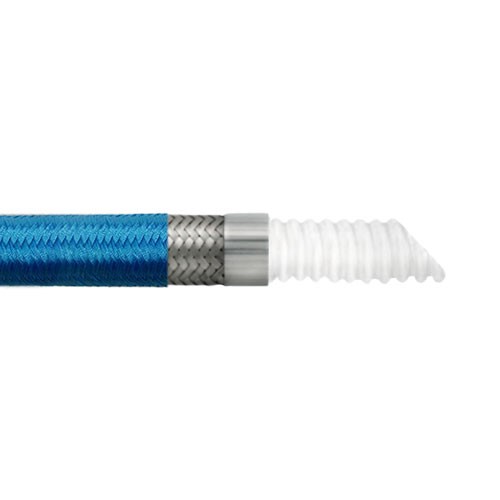

Convoluted PTFE inner tube, covered with stainless steel braid and polyester fiber braid.
Temperature Range
-70°C to +90°C
Applications
Suitable for conveying highly corrosive chemicals, hot air, hot oil, etc.Black anti-static inner tube is available upon customer request.
Features
High flexibility
Smooth surface, easy to clean
Zero friction
High pressure resistance
Wide operating temperature range
Suitable for CIP and SIP cleaning
Certification
FDA compliant
Convoluted PTFE inner tube, covered with stainless steel braid and polyester fiber braid.
-70°C to +90°C
Suitable for conveying highly corrosive chemicals, hot air, hot oil, etc.Black anti-static inner tube is available upon customer request.
High flexibility
Smooth surface, easy to clean
Zero friction
High pressure resistance
Wide operating temperature range
Suitable for CIP and SIP cleaning
FDA compliant
| Code | Size (in.) | ID (mm) | Min. OD (mm) | Wall Thickness (mm) | Bend Radius (mm) | Working Pressure (bar) | Burst Pressure (bar) |
|---|---|---|---|---|---|---|---|
| TCSPF010 | 3/8" | 9.5 | 16.7 | 0.75 | 25 | 110 | 440 |
| TCSPF013 | 1/2" | 12.7 | 19.7 | 0.75 | 35 | 100 | 400 |
| TCSPF016 | 5/8" | 15.9 | 23.5 | 0.75 | 65 | 85 | 340 |
| TCSPF019 | 3/4" | 19 | 27.0 | 0.90 | 65 | 80 | 320 |
| TCSPF025 | 1" | 25.4 | 33.0 | 1.00 | 75 | 60 | 240 |
| TCSPF032 | 1‑1/4" | 32 | 43.7 | 1.00 | 100 | 45 | 180 |
| TCSPF038 | 1‑1/2" | 38 | 49.0 | 1.00 | 140 | 35 | 140 |
| TCSPF051 | 2" | 50.8 | 62.5 | 1.10 | 180 | 25 | 100 |
