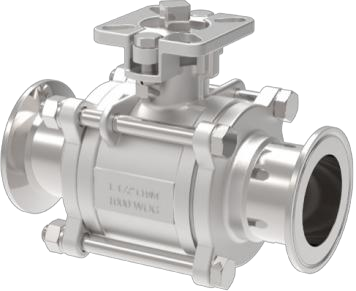

3-PC Ball Valve Clamp End With Direct Mounting Pad C3B-CLD(ISO)

3-PC Ball Valve Clamp End With Direct Mounting Pad C3B-CLD(ISO)

•Blow-Out Proof Stem
•Investment Casting Body
•Standard:Butt Welding ISO
•Locking Device Handle Available
•Direct Mounting Pad Design
•Working Temperature:-20° C~132° C
•Working Pressure:1.0Mpa
•Shell Testing:1.5Mpa
••Inspection & Testing Acc:API598


•Blow-Out Proof Stem

•Investment Casting Body

•Standard:Butt Welding ISO

•Locking Device Handle Available

•Direct Mounting Pad Design

•Working Temperature:-20° C~132° C

•Working Pressure:1.0Mpa

•Shell Testing:1.5Mpa

•Inspection & Testing Acc:API598
