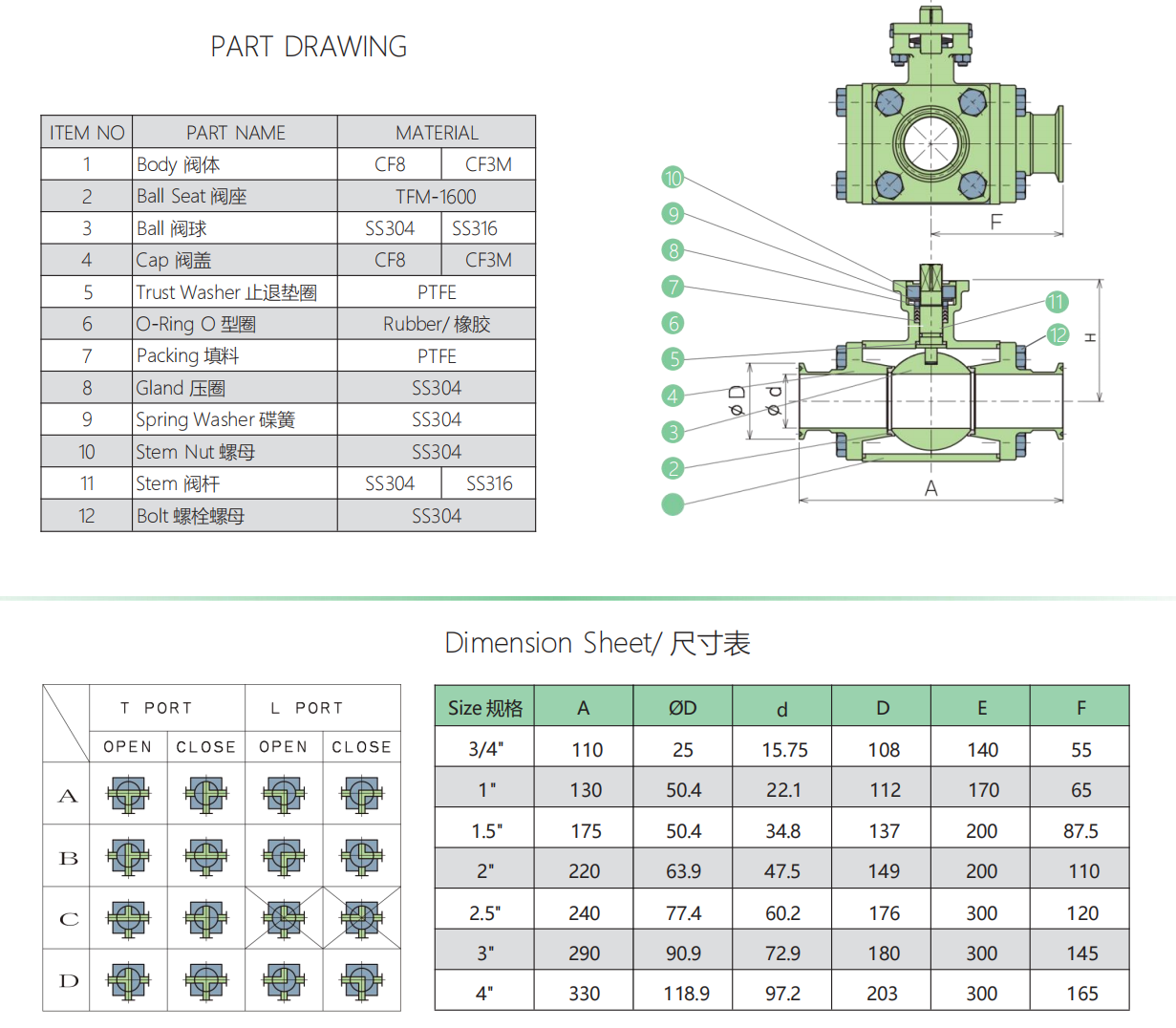

3-Way Ball Valve Clamp End With Handle C3W-CLD(3 A)

3-Way Ball Valve Clamp End With Handle C3W-CLD(3 A)


•Blow-Out Proof Stem
•Investment Casting Body
•Standard:Butt Welding ASME BPE & 3A
•Direct Mounting Pad Design
•Working Temperature:-20° C~132° C
•Working Pressure:1.0Mpa
•Shell Testing:1.5Mpa
•Inspection & Testing Acc:API598


•Blow-Out Proof Stem

•Investment Casting Body

•Standard:Butt Welding ASME BPE & 3A

•Direct Mounting Pad Design

•Working Temperature:-20° C~132° C

•Working Pressure:1.0Mpa

•Shell Testing:1.5Mpa

•Inspection & Testing Acc:API598
