The flange complies with HG20592, 1.6 MPa.
It is manufactured from food‑grade, anti‑static black PFA granules via high‑temperature compression molding and sintering.
The surface is flat and smooth, conforming to hygienic design standards.
The PFA liner is tightly bonded to the stainless steel body, no curling or delamination during long‑term service.
Operating temperature range:
-60 ℃ to +230 ℃
The flange complies with HG20592, 1.6 MPa.It is manufactured from food‑grade, anti‑static black PFA granules via high‑temperature compression molding and sintering.The surface is flat and smooth, conforming to hygienic design standards.The PFA liner is tightly bonded to the stainless steel body, no curling or delamination during long‑term service.
Operating temperature range:-60 ℃ to +230 ℃
Flange standards: HG20592, EN (European Standard), ANSI (American Standard), etc.
Body material: SS316, SS316L, etc.
Liner material: FEP granules or PFA powder compression molded.

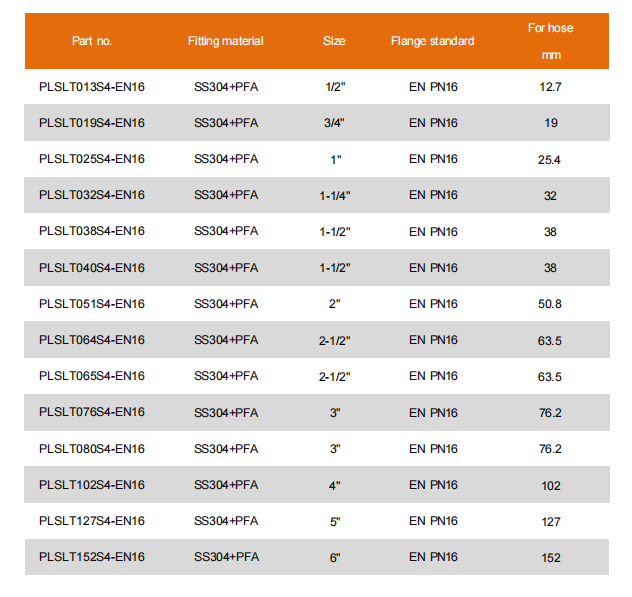

| Code | Material | Size | Suitable Hose I.D. (mm) |
|---|---|---|---|
| PALSLT013S4 | SS304 + PFA | 1/2" | 12.7 |
| PALSLT019S4 | SS304 + PFA | 3/4" | 19 |
| PALSLT025S4 | SS304 + PFA | 1" | 25.4 |
| PALSLT032S4 | SS304 + PFA | 1‑1/4" | 32 |
| PALSLT038S4 | SS304 + PFA | 1‑1/2" | 38 |
| PALSLT040S4 | SS304 + PFA | 1‑1/2" | 38 |
| PALSLT051S4 | SS304 + PFA | 2" | 50.8 |
| PALSLT064S4 | SS304 + PFA | 2‑1/2" | 63.5 |
| PALSLT065S4 | SS304 + PFA | 2‑1/2" | 63.5 |
| PALSLT076S4 | SS304 + PFA | 3" | 76.2 |
| PALSLT080S4 | SS304 + PFA | 3" | 76.2 |
| PALSLT102S4 | SS304 + PFA | 4" | 102 |
| PALSLT127S4 | SS304 + PFA | 5" | 127 |
| PALSLT152S4 | SS304 + PFA | 6" | 152 |
