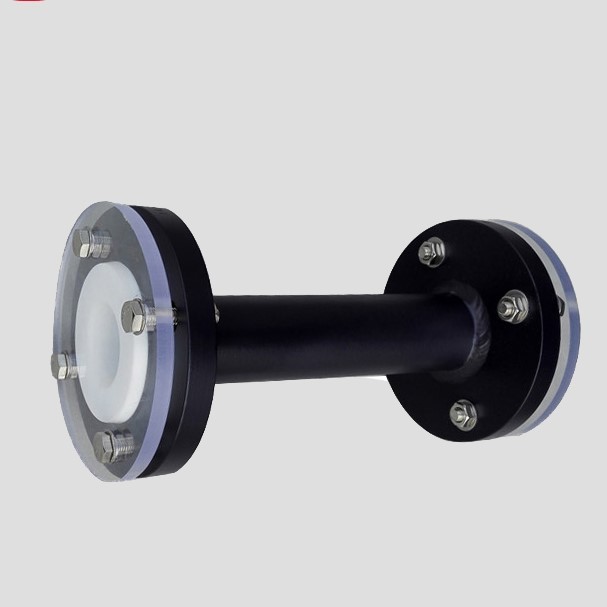

Steel-lined PTFE pipes

Steel-lined PTFE pipes are available with various processing technologies, including isostatic molding, compression molding, tight lining and spray coating, to meet a wide range of application scenarios.The latest high-performance PTFE isostatic lining process refers to a forming method in which the inner and outer surfaces of the workpiece lining are formed under uniform pressure difference in an isostatic pressure chamber.This process is especially suitable for large-diameter pipes and harsh working conditions.

• Nominal Diameter: DN15 – DN1200

• Nominal Pressure: 0.6 MPa, 1.0 MPa, 1.6 MPa, 150 LB, 300 LB

• Lining Material & Service Temperature:PFA (≤ 220 °C), PTFE (≤ 200 °C), ETFE (≤ 150 °C), PO & PE (≤ 80 °C)

• Steel Material: A105, SS304, SS316, SS316L

• Lining Process: Isostatic molding, Compression molding, Tight lining, Rotational molding, Spray coating

• Manufacturing & Inspection Standards: HG/T 2437, HG/T 20538, HG/T 4584, ASTM F1545
