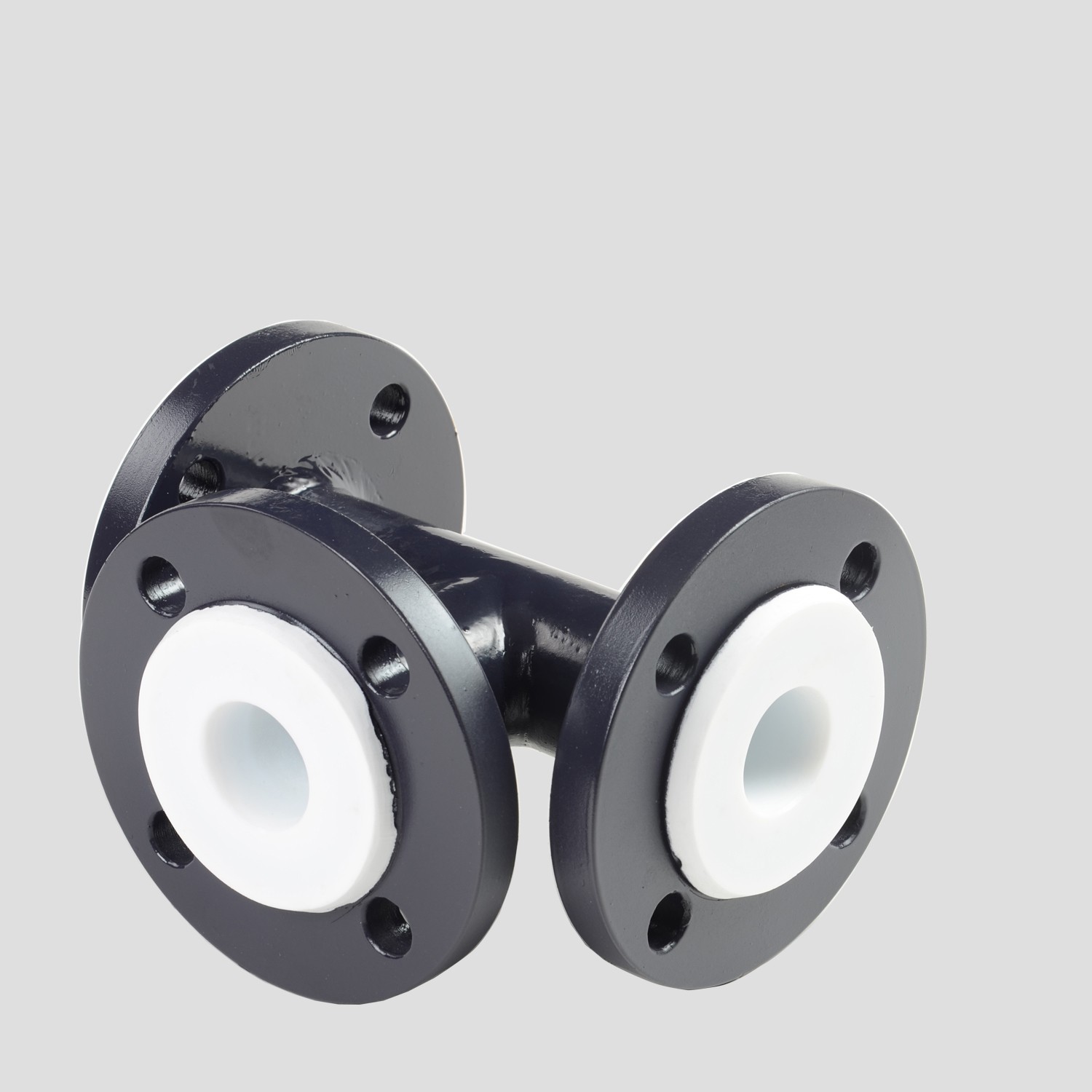

Steel-Lined PTFE Tee / PTFE-Lined Tee

PTFE-lined tee is a widely used pipe fitting for pipeline connections. It is lined with PTFE material, mainly for excellent corrosion resistance and high temperature resistance.

PTFE-lined tees are currently manufactured mainly by isostatic molding and compression molding, and can also be made by spray coating.They are mainly used for connecting pipelines and conveying corrosive media and gases, and are widely applied in chemical, pharmaceutical, environmental protection, smelting, energy and other industries.

According to different nominal diameters, reducing tees can be customized. Different sizes of connection ports can be customized as required.

• Nominal Diameter: DN15 – DN1200

• Nominal Pressure: 0.6 MPa, 1.0 MPa, 1.6 MPa, 150 LB, 300 LB

• Lining Material & Service Temperature:PFA (≤ 220 °C), PTFE (≤ 200 °C), ETFE (≤ 150 °C), PO & PE (≤ 80 °C)

• Steel Material: A105, SS304, SS316, SS316L

• Lining Process: Isostatic molding, Compression molding, Rotational molding, Spray coating

• Lining Inspection: 15–20 KV high-frequency spark test
