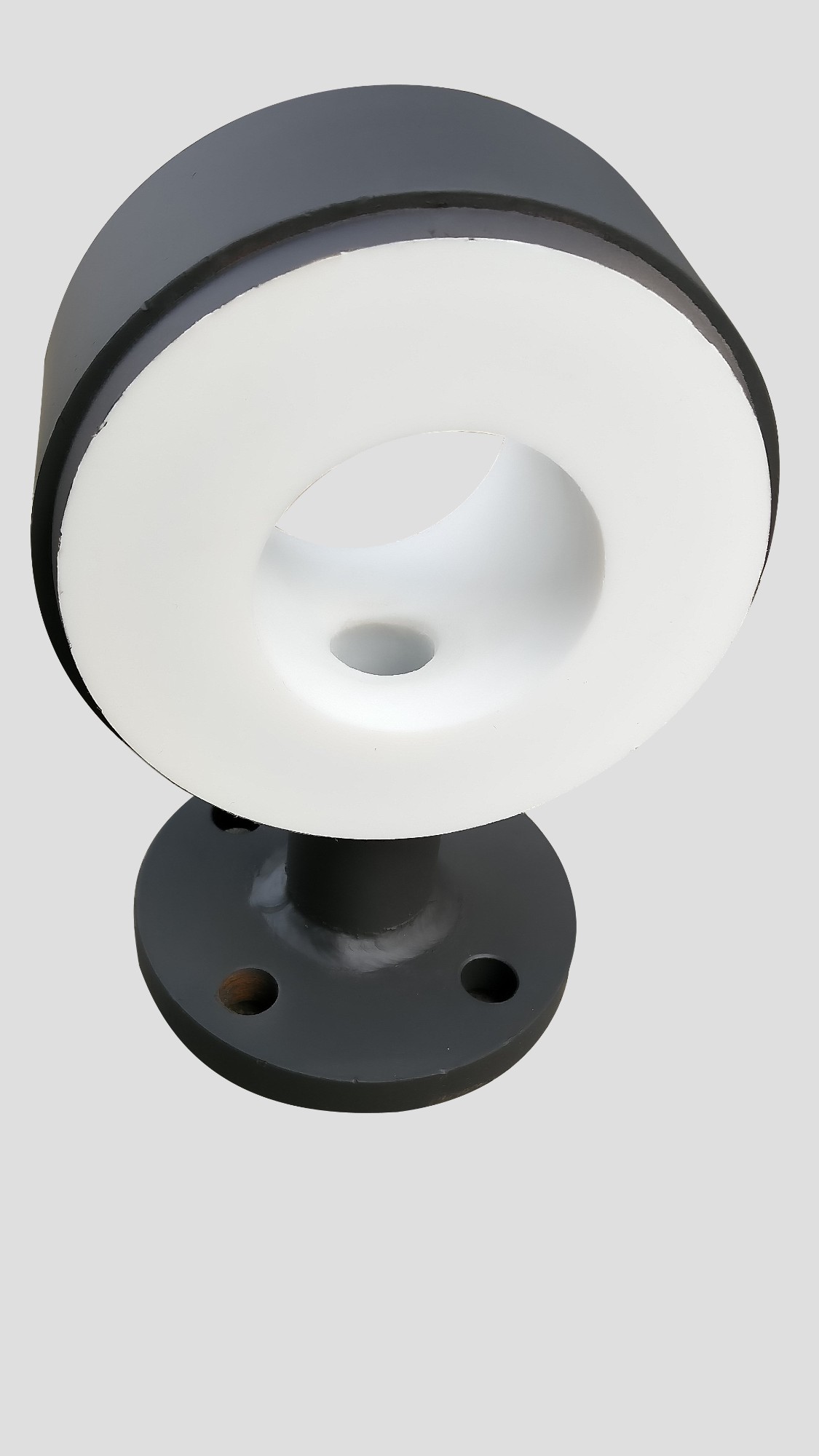

Steel lined PTFE instrument tee

PTFE-lined instrument tee is a wafer-type pipe fitting lined with PTFE, featuring excellent corrosion resistance and high temperature resistance.

PTFE-lined tees are mainly manufactured by isostatic molding and compression molding, and can also be produced by spray coating.They are mainly installed at instrument connections, usually in a reducing design, for conveying corrosive media and gases, and are widely used in chemical, pharmaceutical, environmental protection, smelting, energy and other industries.

PTFE-lined instrument tees are mostly customized according to different nominal diameters。

• Nominal Diameter: DN15 – DN1200

• Nominal Pressure: 0.6 MPa, 1.0 MPa, 1.6 MPa, 150 LB, 300 LB

• Lining Material & Service Temperature:PFA (≤ 220 °C), PTFE (≤ 200 °C), ETFE (≤ 150 °C), PO & PE (≤ 80 °C)

• Steel Material: A105, SS304, SS316, SS316L

• Lining Process: Isostatic molding, Compression molding, Rotational molding, Spray coating

• Lining Inspection: 15–20 KV high-frequency spark test
