All plastic valve series

With the increasing proportion of plastic pipelines in cold/hot water supply and industrial piping applications, quality control of
plastic valves within these systems is becoming particularly important. Owing to their advantages—such as light weight, corrosion resistance, non-adherence to scale, integration with plastic piping systems, and long service life—plastic valves offer
unmatched benefits in water supply (especially hot water and heating) and other fluid transport systems using plastic pipes, compared to other valve types. I. The company introduces the following three types of all-plastic valves:
1. All-Plastic Ball Valve
The main model is the Q41F type all-plastic ball valve. Plastic ball valves offer excellent corrosion resistance. The seal ring, made of PTFE (F4), ensures reliable sealing and requires low operating torque. They feature low flow resistance, quick
opening/closing, a simple structure, and a aesthetically pleasing appearance. The materials are sanitary, non-toxic, and wearresistant. They are easy to disassemble, maintain, and repair. 2. All-Plastic Butterfly Valve
The main model is the D71X type all-plastic butterfly valve. Plastic butterfly valves offer excellent corrosion resistance and
reliable sealing. They require low operating torque, open and close rapidly, and have a simple structure with a aesthetically
pleasing appearance. The materials are sanitary, non-toxic, and wear-resistant. They are easy to disassemble, maintain, and

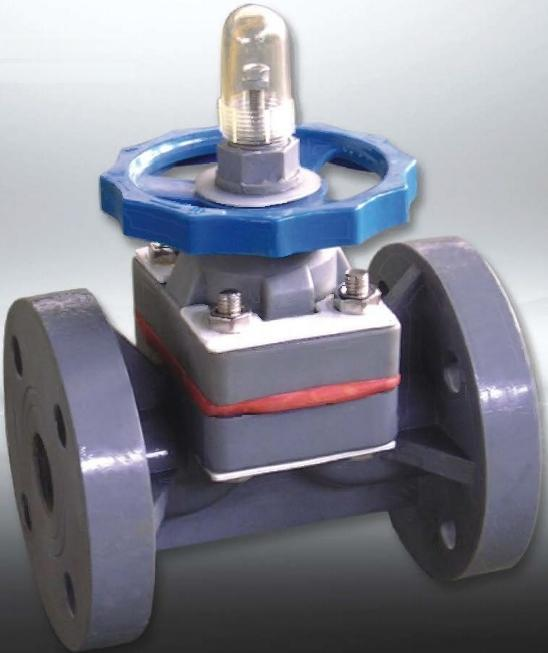

repair. 3. All-Plastic Diaphragm Valve
The main model is the G41F type all-plastic diaphragm valve. The plastic diaphragm offers excellent corrosion resistance
and ensures reliable sealing. Utilizing a screw-type lifting mechanism, these valves require low operating torque and provide
smooth, stable operation. They have a simple structure and a aesthetically pleasing appearance. The materials are sanitary, non-toxic, and wear-resistant. They are easy to disassemble, maintain, and repair.
